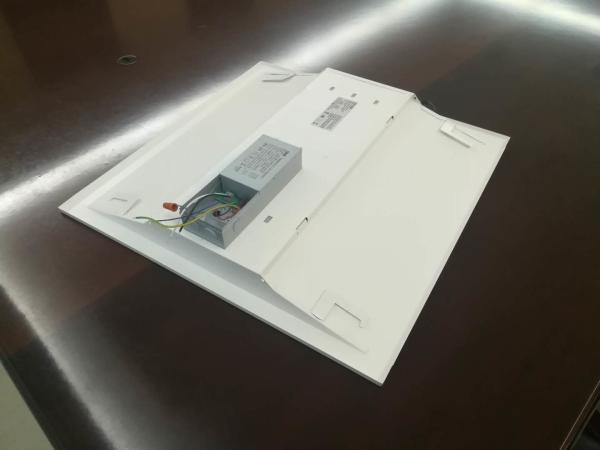

5 years warranty 2*2 foot 20W LED Troffer Light Retrofit Kits suspended 130Lm/W high efficiency office cilling lighting

(I) Product Features:

* 20W troffer with 130lm/W super high output is an excellent replacement of panel lighting for office lighting;

* Healthy and energy saving, No toxic heavy metals, VOC, or mercury were used in the design ,and more than 70% energy saving;
* High quality KD LIGHTING power supply, AC100V~277V, 50/60Hz input voltage, constant voltage or
constant current output, quick responds, no flicker, PFC function available, 0-10V availableconstant available;
* 1-10V,DALI, Daylight sensor intelligent control is available;
* Adopting SMD2835 LEDs light source, high output lighting efficiency 130Lm/W, high Color Rendering Index (CRI>80Ra), excellent heat dissipation, low light decay;
* Constructed in a heavy-duty 6063 aluminum and PC, durable and excellent heat dissipation efficienc;
* Recessed installation and suspended installation for option;
* Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a silvery, black and white finish.
* UL/CUL,DLC,CE, RoHS listed, 5 years’ guarantee;

(II) Applications:
* Train, Bus station and Office;
* Workshops and warehouse;
* Supermarkets;
* Exhibition center;
* Airport Hall;
* Underground garage;
(III) Quick View:
1. 20W/2*2ft, 2,400-2,600lm, IP20;
2. Inputing rating: AC100-277V 50/60HZ;
3. Beam Angle: 120º;
4. Size: 23.74(L)*23.74(W)*4.05(D)ft;
5. UL/CUL,DLC,CE,RoHS listed;
6. 5 years guarantee;

(IV) Technology Parameters:

Item No.	KD-TL0202-20NX	Housing color	Silver/White
Input Voltage	AC100-277V 50/60HZ	CRI	>83Ra
Power	20W	IP Ranking	IP20
Working Temp	-20 to +45℃	Power Factor (PF)	＞0.95
Luminous Flux	2400-2600lm	Material	Al+PMMA
LED QTY	150PCS	Light Source	SMD2835
Beam Angle	120º	LED Efficiency	130LPW
CCT	2700-6500K	Certificate	UL/CUL,DLC,CE,RoHS listed
Dimension	23.74(L)*23.74(W)*4.05(D)ft	Warranty	5 years
Weight	3.2Kg	Driving	Flicker free

(V) Delivery and Payment Details:

Delivery
Delivery Time	5-7 working days for sample orders, 10-15working days for mass orders
Payment	T/T,L/C, Western Union, PAYPAL
Payment Terms	30% T/T in advance, balance before shipment
MOQ	1PCS

(VI) Installation:

(VII) Optical & Photometric Data:

(VII) Package:

About Package
Package Carton	Neutral Package/OEM Package
Components Included	Name	Qty”/PCS
	LED Troffer Light	1
	Specification	1
	Warrantee Card	1
