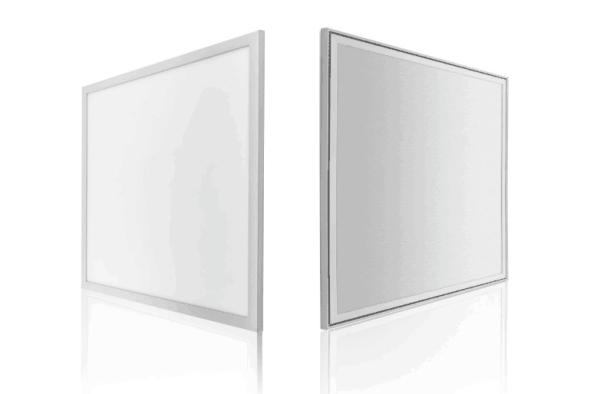

5 years warranty 120lm/W 36W 600*600mm LED Light Panel Screwless installation kit , TUV-GS listed

(I) Product Details:
* Custom-made size is available, UGR<19 is available;
* 5 years guarantee;
* Elegent design, adopting high quality 6063 Al for housing, excellent heat dissipation;
* Innovative 360° installation screw design according to the actual installation ocassions;
* 11.9mm ultra slim design, 25mm width Al frame can greatly increase the illumination area;
* No need re-wiring, plug and play;
* 300*300mm, 300*600mm, 600*600mm, 620*620mm, 300*1200 and 600*120mm size for option;
* 100LPW Standard Version, 120LPW Proline Version for option, CRI>83Ra, more sufficient, 1-10V, DALI, Emergency available;
* EMC, EMI and LVD listed, flicker-free driver, eyes protection;
* Various installation for option, recessed, surface mouted and suspending;





(II) Applications:
* Replaces fluorescent grid;
* Retail, offices, schools, hospitals;
* Corridors and stairwells;
* Exhibition center;
* Suspended ceiling lighting for offices;

(III) Quick View:
1. 36W/595*595mm, 3,600-4,320lm, IP40;
2. Inputing rating: AC100-240V 50/60HZ;
3. Beam Angle: 120º;
4. Size: 595(L)*595(W)*11.9(T)mm;
5. TUV/GS,LM79,LM80,SAA listed;
6. 5 years guarantee;

(IV) Technology Parameters:

Item No.	KD-PL0606-36HC22X	Housing color	Silver
Input Voltage	AC100-240V 50/60HZ	CRI	>83Ra
Power	36W	IP Ranking	IP40
Working Temp	-20 to +45℃	Power Factor (PF)	＞0.95
Luminous Flux	3600-4320lm	Material	Al+PMMA
LED QTY	240PCS	Light Source	SMD2835
Beam Angle	120º	LED Efficiency	100LPW/120LPW for option
CCT	2700-6500K	Certificate	CE, RoHS,TUV,SAA,LM79
Dimension	595(L)*595(W)*11.9mm	Warranty	5 years
Weight	4.5Kg	Driving	Flicker-free

(V) Delivery and Payment Details:

Delivery
Delivery Time	5-7 working days for sample orders, 10-15working days for mass orders
Payment	T/T,L/C, Western Union, PAYPAL
Payment Terms	30% T/T in advance, balance before shipment
MOQ	4PCS

(VI) Optical & Photometric Data:

(VII) Package:

About Package
Package Carton	Neutral Package/OEM Package
Components Included	Name	Qty”/PCS
	LED Panel Light	4
	Specification	1
	Warrantee Card	1
