    IP66 Industrial Outdoor Security Lighting 180W Dimming Control Available

    Ask Lasest Price
    Brand Name : KD LIGHTING,KODEEVIA
    Model Number : KD-ST180-CG1
    Certification : CE,RoHS,LM80,SAA,ETL,DLC pending
    Price : USD172.83/PCS
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000PCS/Month
    Delivery Time : 5-7 business days for samples,10 to 20 business days for bulk orders
    • Product Details
    • Company Profile

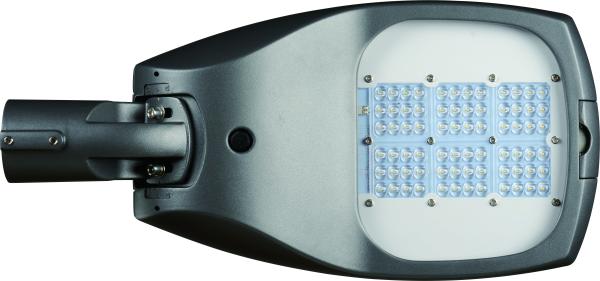

    IP66 Industrial Outdoor Security Lighting 180W Dimming Control Available

    180W Intelligent LED Street Light 140Lm/W IP66 industrial outdoor security lighting 5 years warranty


    (I) Product Details:

    * Specially designed smart street lighting fixture with Intelligent dimming control available,photocell controller;
    * super long life span and reliability ensured by Specially designed Rugged die-cast aluminum housing with corrosion resistant hardware, excellent performance by super durable powder coating finish withstand extreme climate changes without cracking or peeling;
    * Air-flow through heat sink design provides perfect heat management, lighter but stronger construction. Smooth and glossy processing with natural clean system prevents debris build-up and minimizes wind loading;
    * Dual-hoop mounting system fitted to 40-60mm (O.D.) mast-arms accommodates safety and stability. Capable of being adjusted the degree of ±45°;
    * Top brand conponents, LUMILEDS LEDs light source,Meanwell/SOSEN driver,durable;
    * Adopting SMD3030/5050 LEDs light source, high output lighting efficiency 100-130lm/W, high Color Rendering Index (CRI>70/80Ra), excellent heat dissipation,low light decay;.
    * Modular design optimizes construction and assembly, allows for easy maintenance, upgrade and SKD purchasing for local assembly;
    * Tool-less access to the down-opening driver door makes easy maintenance and operation;
    * Maintenance Free, IP66 protection, IK10 vibration grade;
    * LM-79/80 reports available;
    * CE,RoHS listed, UL/CUL pending, 5 years’ warranty.



    (II) Applications:
    ∴ Roadways;
    ∴ Avenues;
    ∴ Walkways;
    ∴ Loading Area;
    ∴ Parking lot.
    ∴ Playground;
    ∴ Sport and Stadium;

    (III) Quick View:
    * 180W, 25,200lm±5%, IP65;
    * Inputing rating: AC90-305V 50/60HZ;
    * Beam Angle: 65*120°/75°*135° for option;
    * Size: 950(L)*455(H)*137(D)mm;
    * CE, RoHS,LM80,ETL,DLC,SAA pending;
    * 5 years guarantee;


    (IV) Technology Parameters:

    Item No.
    KD-ST180-CG1
    Housing color
    Silver, Black, Grey etc
    Input Voltage
    AC90-305V 50/60HZ
    CRI
    >70/80Ra for option
    Power
    180W
    IP Ranking
    IP66
    Working Temp
    -20 to +45℃
    Power Factor (PF)
    >0.9
    Luminous Flux
    25,200lm±5%
    Material
    Die-cast Aluminum
    LED QTY
    96PCS
    Light Source
    SMD3030
    Beam Angle
    65*120°/75°*135° for option
    LED Efficiency
    100LPW(Standard Version)/130LPW(Proline Version)
    CCT
    2700-6500K
    Certificate
    CE, RoHS,LM80,ETL,DLC,SAA for option
    Dimension
    950(L)*455(H)*137(D)mmmm
    Warranty
    5 years
    Weight
    12.3Kg
    Driving Brand
    Sosen/Meanwell
    (V) Delivery and Payment Details:
    Delivery
    Delivery Time
    5-7 working days for sample orders,10-15working days for mass orders
    Payment
    T/T,L/C,Western Union
    Payment Terms
    30% T/T in advance,balance before shipment
    MOQ
    5PCS
    (VI) Optical & Photometric Data:
    (VII) Package:
    About Package
    Package CartonNeutral Package/OEM Package
    Components IncludedNameQty”/PCS
    LED Street Light1
    Specification1
    Warrantee Card1
