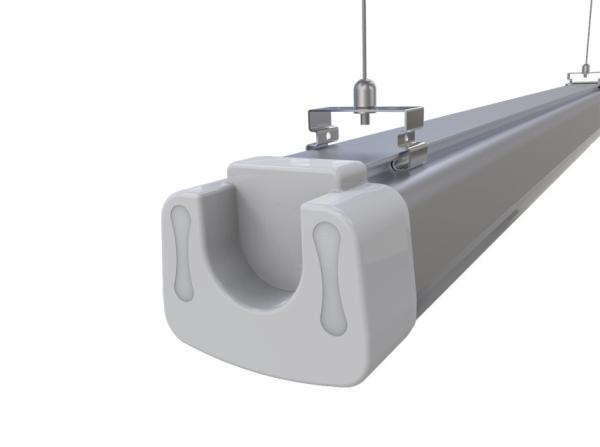

Water-proof LED tri-proof light , TUV-GS , SAA , UL listed ,120Lm/W efficiency 4ft 40W

(I) Product Features:

* 4ft 40W LED tri-proof light, specially designed for industrial indoor lighting;
* Constructed in a heavy-duty 6063 aluminum and PC, durable and excellent heat dissipation efficiency;
* Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a silvery, black and white finish. No toxic heavy metals, VOC, or mercury were used in the design;
* Top brand Meanwell constant current driver is isolated away from the heat source of the LEDs, keeps the stability and performance of the driver for long life span;
* Adopting SMD2835 LEDs light source, high output lighting efficiency 120LPW, high Color Rendering Index (CRI>83Ra), excellent heat dissipation, low light decay(decay;
* High quality Meanwell / Tridonic power supply, AC100V~277V, 50/60Hz input voltage, constant voltage or constant current output, quick responds, no flicker, lightning protection, PFC function available, 0-10V, DALI intelligent dimming available;
* 100LPW Standard Version, 120LPW Proline Version, 160LPW Primeline Version for option, CRI>83Ra, more sufficient;
* Suspended / Surface mounted / Adjustable installation for option;
* PIR sensor, Emergency, 1-10V, DALI, Microwave sensor is available;
* 5 years guarantee;

(II) Applications:
* Train, Bus station and Office;
* Workshops and warehouse;
* Supermarkets;
* Exhibition center;
* Airport Hall;
* Underground garage;
(III) Quick View:
1. 40W/4ft, 4,000-6,400lm, IP65;
2. Inputing rating: AC100-277V 50/60HZ;
3. Beam Angle: 120º;
4. Size: 1200(L)*90(W)*74(H)mm;
5. CE, RoHS,TUV/GS,SAA,UL/CUL,DLC listed;
6. 5 years guarantee;

(IV) Technology Parameters:

Item No.	KD-TPL040-CG41	Housing color	Silver/White
Input Voltage	AC100-277V 50/60HZ	CRI	>83Ra
Power	40W	IP Ranking	IP65
Working Temp	-20 to +45℃	Power Factor (PF)	＞0.95
Luminous Flux	4000-6400lm	Material	Al+PMMA
LED QTY	288PCS	Light Source	SMD2835
Beam Angle	120º	LED Efficiency	100/120/160LPW for option
CCT	2700-6500K	Certificate	CE,TUV/GS,SAA,UL/CUL,DLC
Dimension	1200(L)*90(W)*74(H)mm	Warranty	5 years
Weight	370g	Driving	Flicker-free

(V) Delivery and Payment Details:

Delivery
Delivery Time	5-7 working days for sample orders, 10-15working days for mass orders
Payment	T/T,L/C, Western Union, PAYPAL
Payment Terms	30% T/T in advance, balance before shipment
MOQ	20PCS

(VI) Optical & Photometric Data:

(VII) Installation:

(VIII) Package:

About Package
Package Carton	Neutral Package/OEM Package
Components Included	Name	Qty”/PCS
	LED Tri-proof light	4
	Specification	1
	Warrantee Card	1
